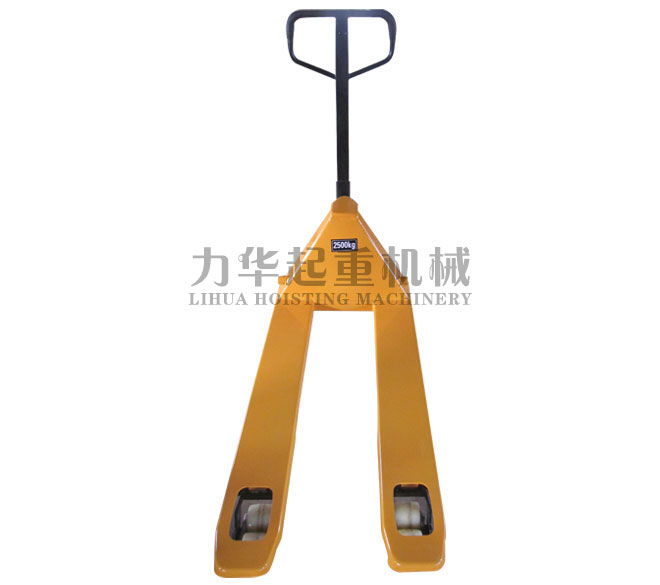

The hank pallet truck are used for tranaporting cargoes much easier.Optional by customers.
With the character of 1.No oil leakage 2.Easy handling and lifting
Hand Pallet Truck Specification:
|
Model |
CBY-2.5 |
CBY-3 |
|
Capacity (kg) |
2500 |
3000 |
|
Lowered fork height (mm) |
85/75 |
|
|
Total Lift Height(mm) |
195/185 |
|
|
Fork Length(mm) |
1100 |
1150 |
|
Width over the forks(mm) |
550 |
685 |
|
Steering wheel size(mm) |
Φ180 |
|
|
Front wheel (mm) |
Φ80 |
|
|
Self Weight (kg) |
75 |
92 |
|
Qty /20 container (pcs) |
180 |
144 |
